Excellent condition.

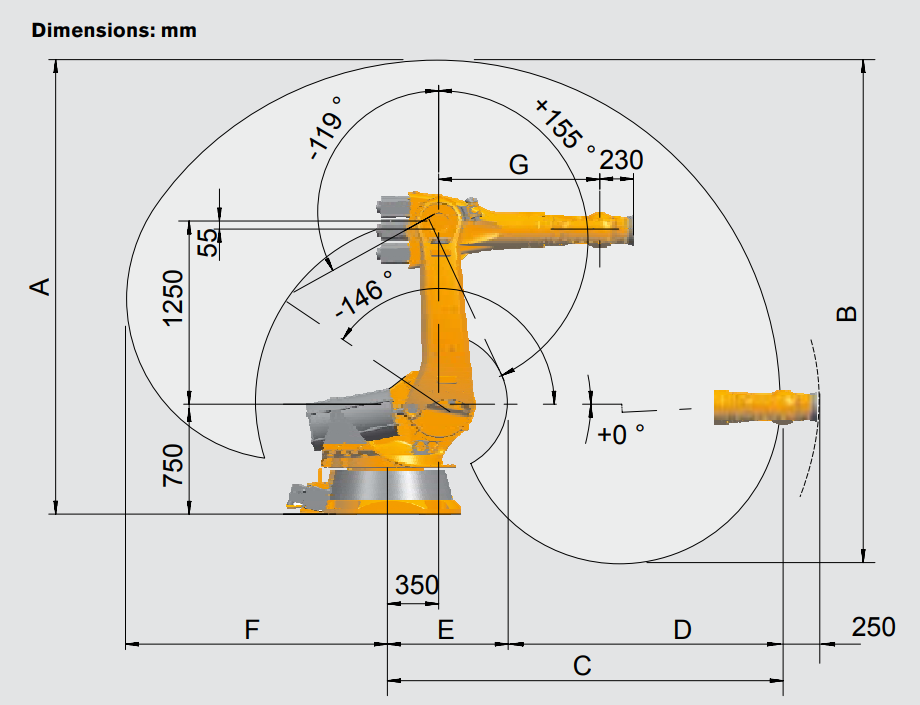

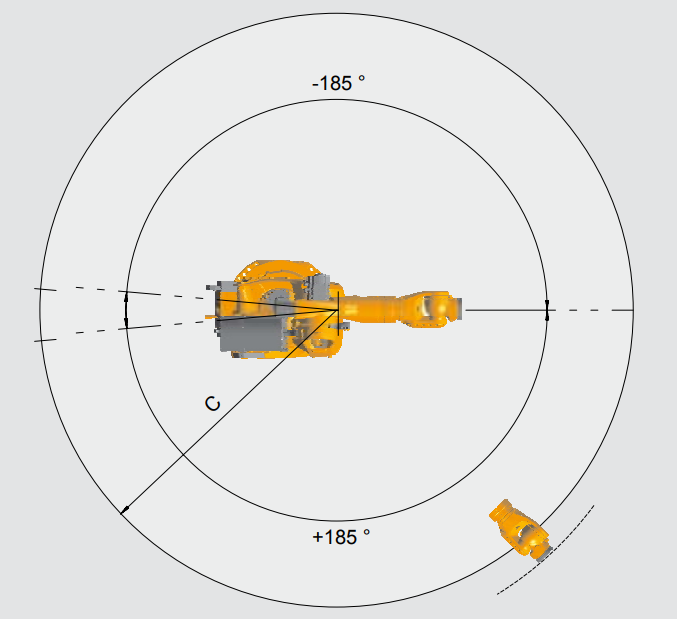

Maximum reach | 2,700 mm |
Rated payload | 150 kg |
Suppl. load, arm/link arm/rotating col. | 50/100/300 kg |
Suppl. load, arm + link arm, max. | 100 kg |
Maximum total load | 550 kg |
Number of axes | 6 |
Mounting position | Floor, ceiling |
Variant | Cleanroom, Foundry |
Positioning repeatability | ±0.06 mm |
Path repeatability | |
Controller | KR C2 edition2005 |
Weight (excluding controller), approx | 1,245 kg |
Temperature during operation | +10 °C to +55 °C |
Protection classification | IP 65 |
Robot footprint | 1,006 mm x 1,006 mm |
Connection | 7.3 kVA |
Noise level | < 75 dB |
