Knuckle joint press Barnaul KB 8340 1000 ton

• Condition

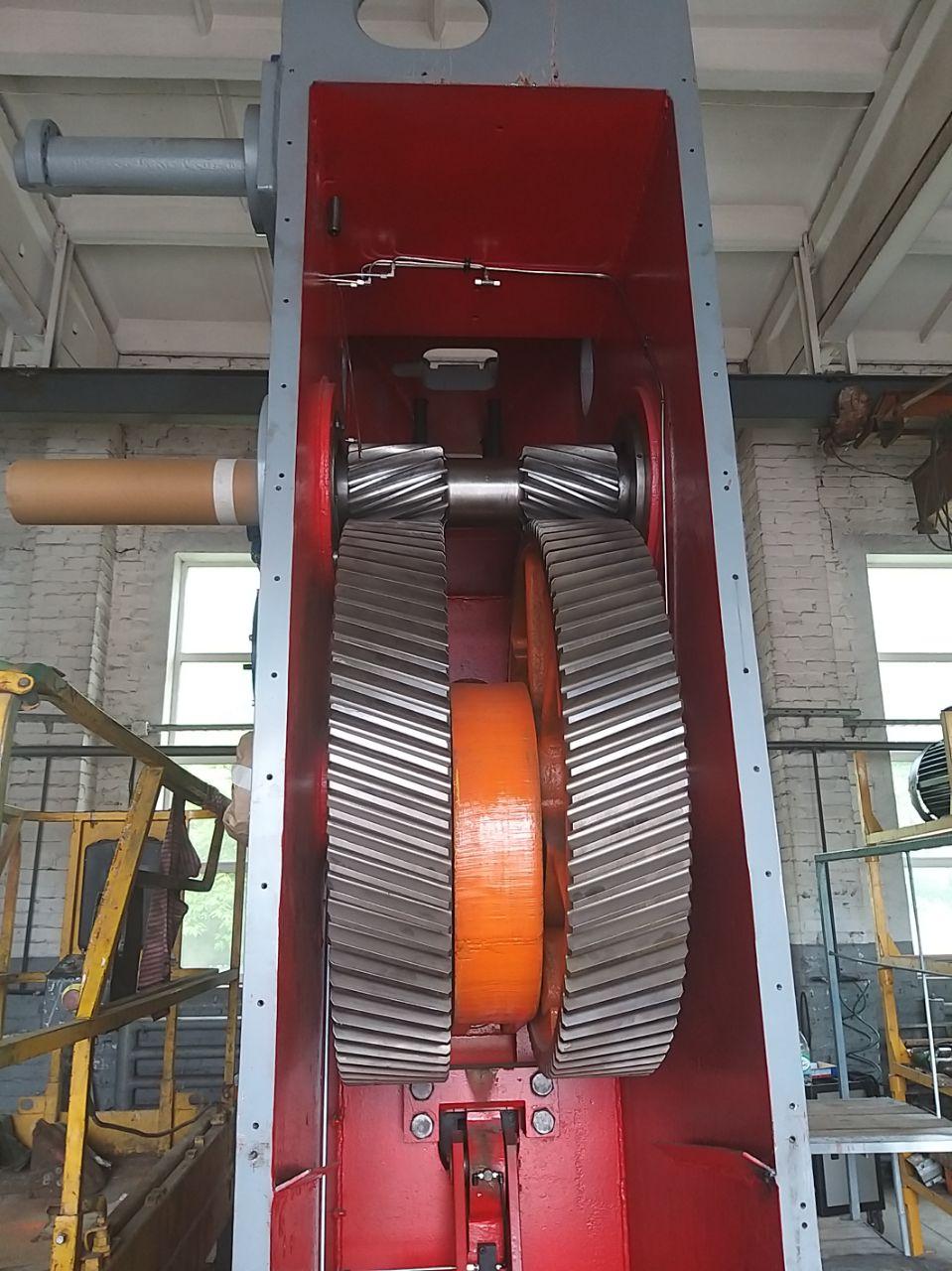

• Full overhaul/modernization of the press.
  Fully completed by mechanical parts, brand new pneumatic and lubrication systems.
  A brand new electric you’ll need to install by your side.

• Watch video
• Video #1
• Technical Specifications

• Force	1000 ton
  Stroke	170 mm
  Number of strokes per minute	32
  Shut height	470 mm
  Adjustment	16 mm
  Table size	800 x 800 mm
  Bolster plate thickness	140 mm
  Bottom ejector
  -Stroke	110 mm
  -Force	320 kN
  Top ejector
  -Stroke	10 mm
  -Force	100 kN
  Main motor	40 kW, 380 V
  Overall dimensions	2950 x 1950 x 4090 mm
  Weight	26 tons

• Additional Information

• Knuckle joint press Barnaul KB 8340 1000 ton — has proven itself especially in pressing and punching processes where a relatively small stroke is required.
  This includes: Embossing, Cold forging presses, Solid forging, Thick sheet metal forming, Fine blanking presses, Deep drawing, Trimming and deburring
