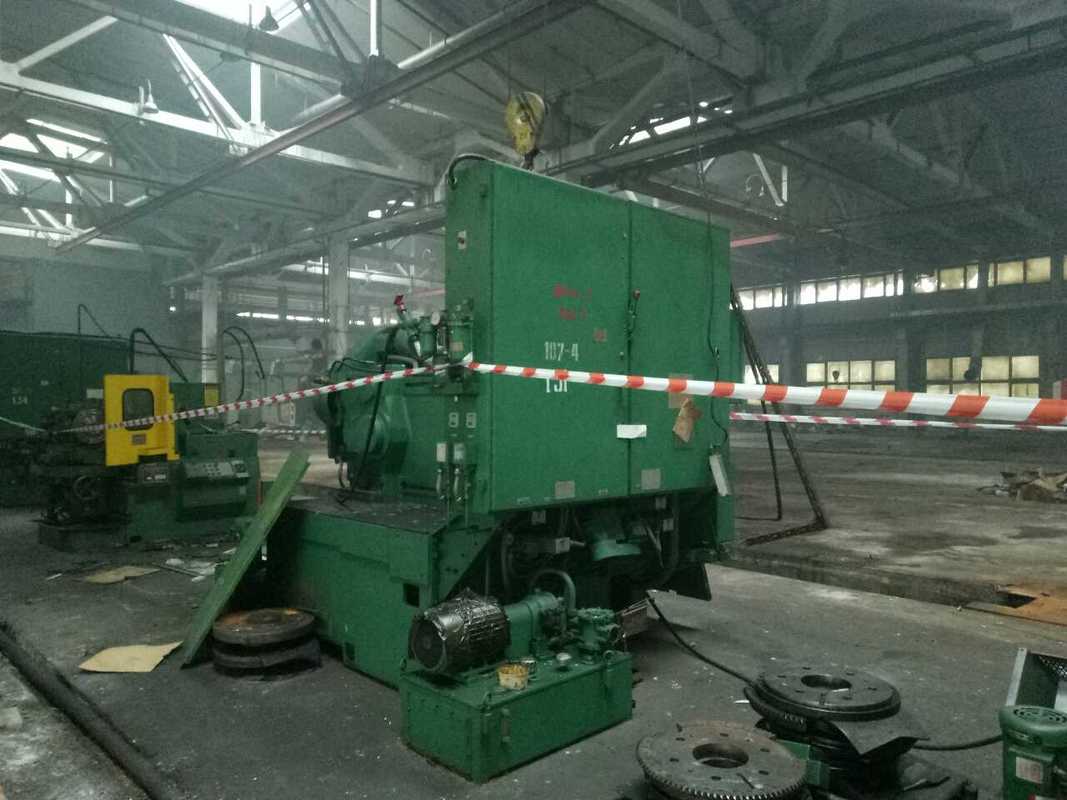

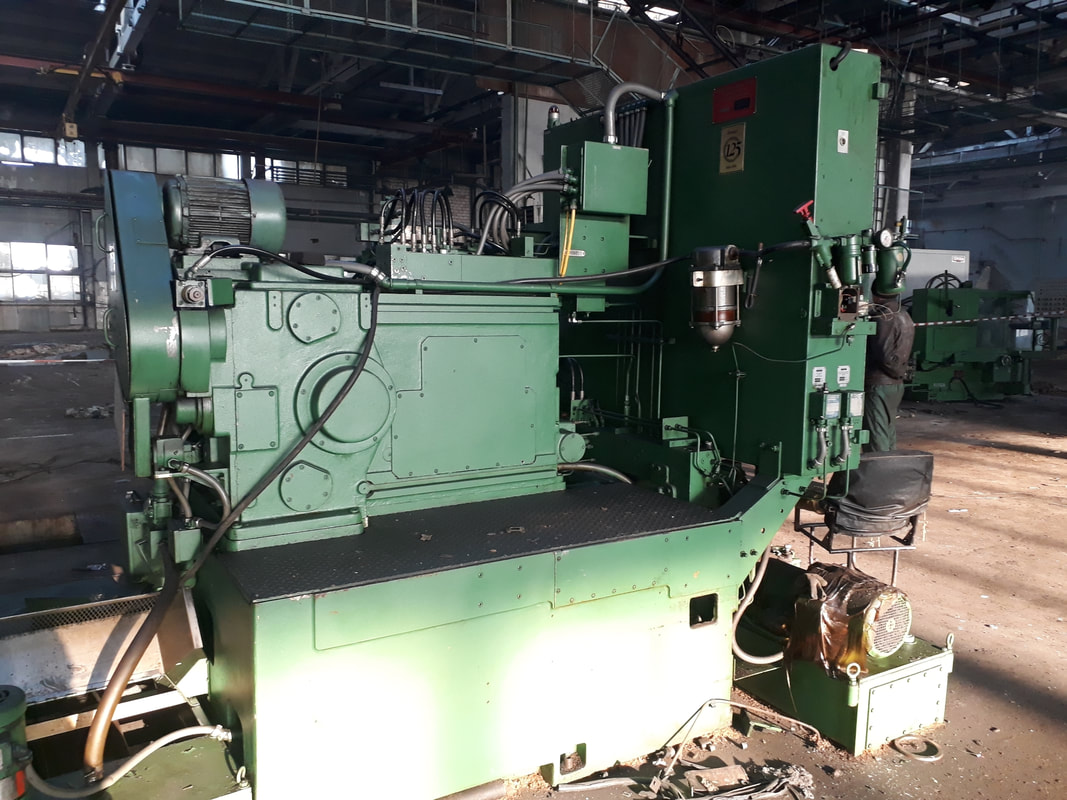

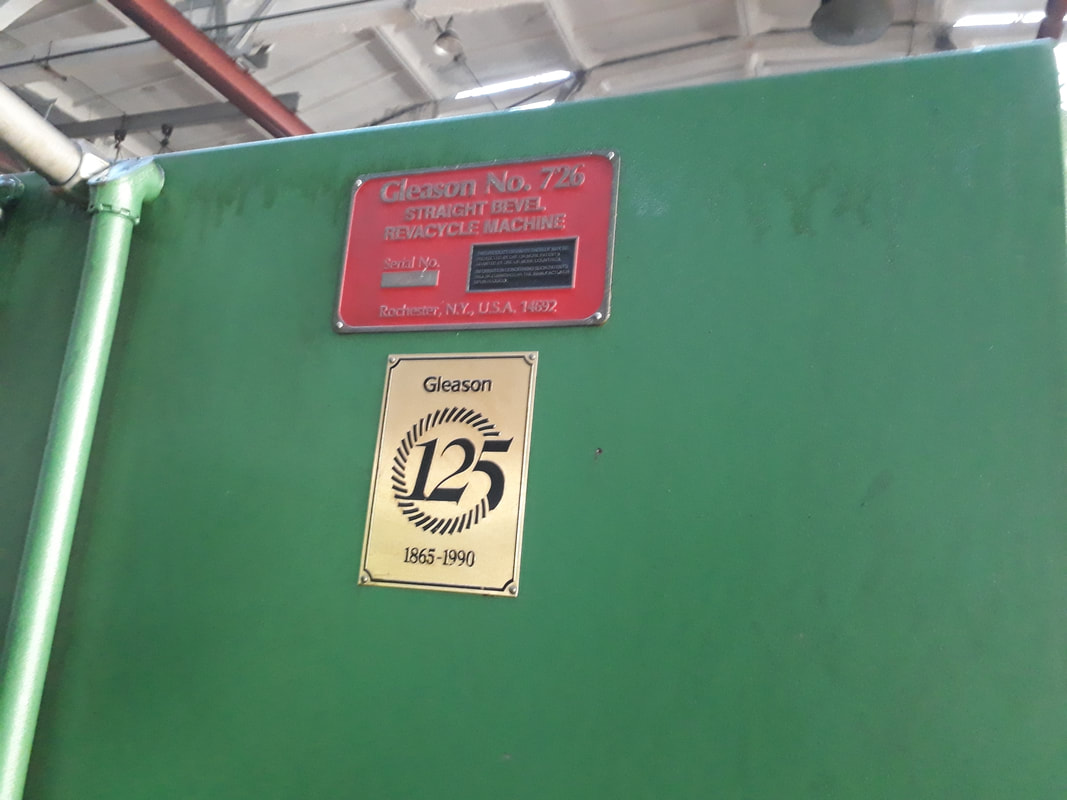

Gear hobbing Machines GLEASON 726

• Technical Specifications

• Tooth width max 38 mm.
  Advance seconds x tooth 2 — 3,1
  Cutting speed 33 a 50 m/min
  Radial displacement 14,8 mm.
  Roll cradle feeds in minutes of angle per cutter head revolution 32,6 — 49,7 m/min.
  Spindle nose with short taper, outside 99,06 mm.
  Spindle speeds in standardised steps 400 rpm.
  Ø max gear 102 mm.
  Electrical Characteristics
  Engine Cooling Power 2 Cv.
  Main motor power 10 Cv.
  Motor power chip conveyor 0,25 Cv.
  Power hydraulic motor 7,5 Cv.
  Voltage 220/380 V.
  Dimensions and Weights
  Long 3.200 mm.
  Weight 10.000 Kg.
  Width 2.250 mm.
