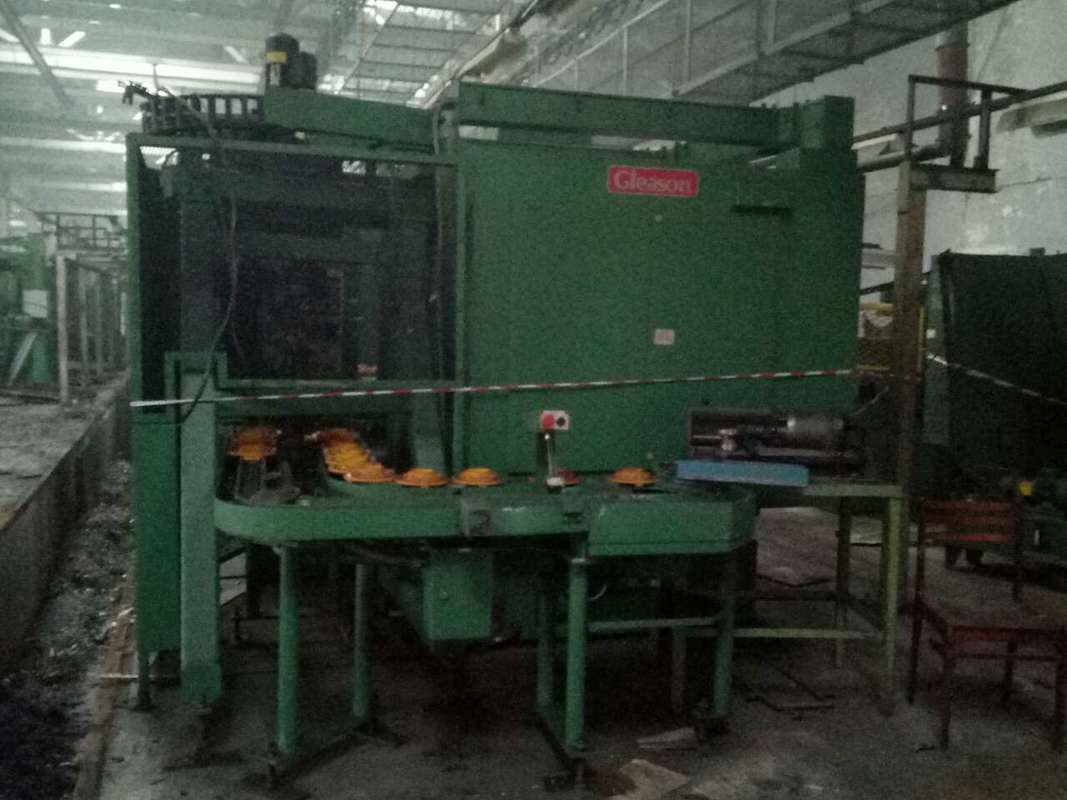

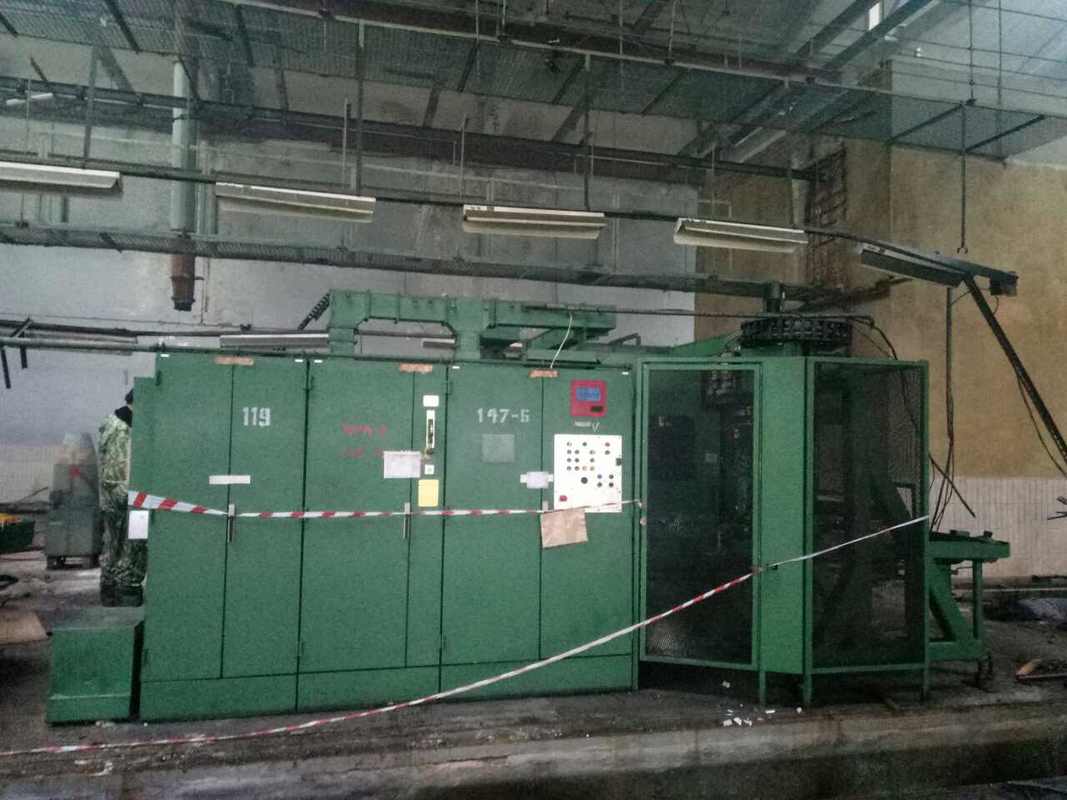

CNC generator Gleason No. 2010

• Technical Specifications

• Max. radial adjustment: 177,80 mm
  Max. full depth: 15,24 mm
  Max. width: 50,80 mm
  Number of teeth: 5-100
  Milling diameters: 102, 128, 152, 176, 210 mm
  Speeds:
  -Of milling: 30-210 rpm
  -Of work-piece spindle: 0-285 rpm
  Max. offset:
  -Over center: 57,15 mm
  -Belowe center: 57,15 mm
  Distance between machine center and spindle end: 368,30 mm
  Work-piece spindle:
  -Taper diameter: 99,22 mm
  -Conicity for 1 foot: 15,48 mm
  -Cone depth: 152,40 mm
  -Spindle opening diameter: 77,79 mm
  Floor space: 4420×2670 mm
  Height: 2570 mm
  Net weight: 9070 mm
